Pro Convert 12G SDI 4K Plus

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI® with loop-through

Connects existing source equipment into NDI-enabled, IP-based media networks
Supports inputs up to 4K at 60f ps with 16 channels of embedded audio
Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Specifications and Features

Input & Loop through Features

Max video input & loop through: 4096×2160 60fps. Supported resolutions include:
- 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 50/59.94/60
- 720×576 25p/50i (PAL SD)
- 720×480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G/6G/12G-SDI BNC input & loop through
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
Receive 12G-SDI transmitted up to 30m (98ft), 6G-SDI 80m (262ft)

NDI® Encoding Features

Encoding Full NDI real-time stream at up to 4096×2160 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
- 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 5.x

Configuration Management

Registration with Control Hub
Remote control via WebUI and Control Hub
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Support for updating firmware
Support for USB RNDIS/ECM
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

On-board Control Buttons

16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control

Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)

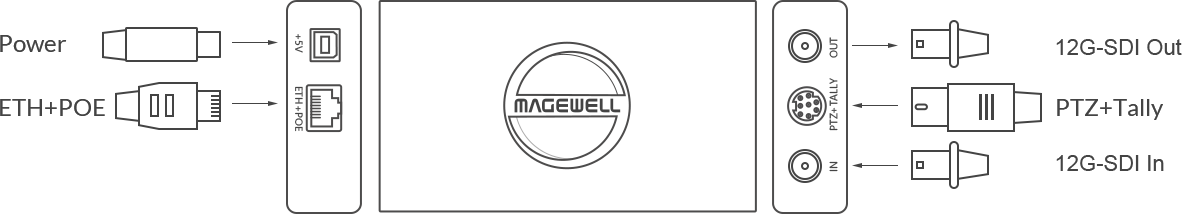

Network Interfaces

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces

USB2.0 Type B

5V/2.1A power supply
USB RNDIS/ECM

Supported Products

NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product

LED Indicators

Status LEDs indicate:

Power supply: on/off
Tally: preview/program
Input signal: locked/unlocked
Loop through signal: on/off

Form Factor

117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
L-bracket
Tally light

Screw Mounting Hole

¼–20 threaded hole

Power Consumption

5V max current: ~ 1.65 A
Max power consumption: ~ 8.5 W

Working Environment

Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

Mini DIN8 to DIN8+DB9 cable x1
Part number: ACC00110

L bracket x1
Part number: 92240

Tally Light x1
Part number: 99090

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
