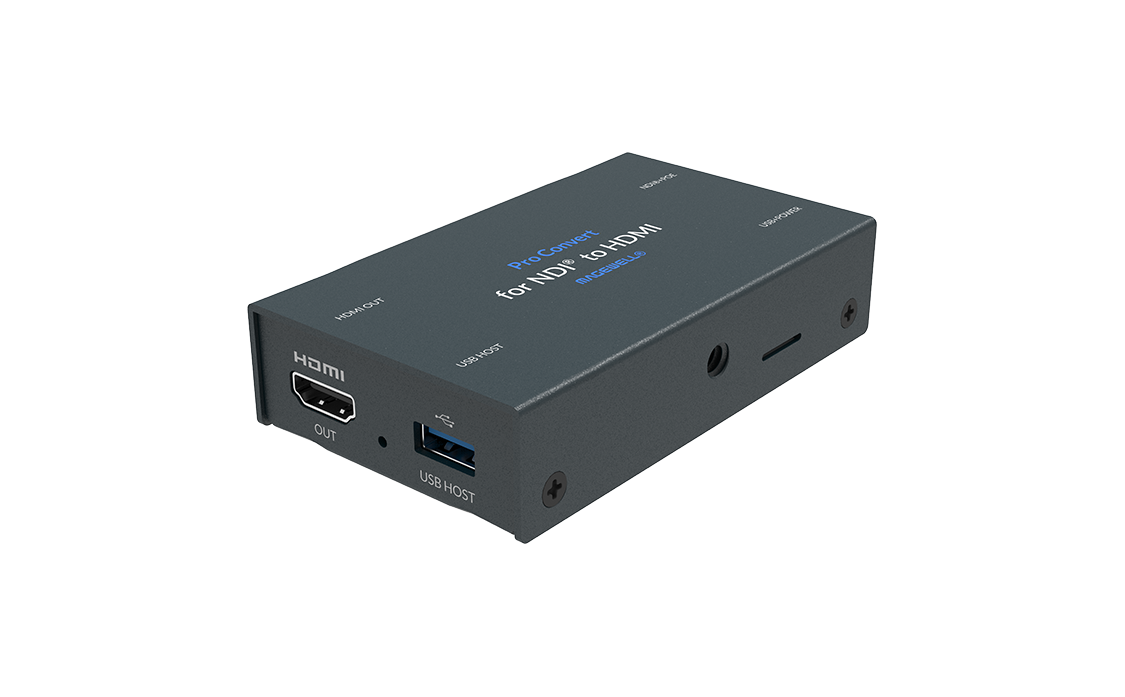

Pro Convert for NDI® to HDMI

Converts a live NDI® stream into HD HDMI signal

Connects baseband presentation or distribution equipment into IP-based media networks
Decodes Full NDI and NDI|HX including earlier variants into HD HDMI
Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

* Magewell offers accessories to mount this model on the 1RU rack. A module-type product of the same specification is also available for use with the Magewell Modator chassis for high-density deployment.

Specifications and Features

Output Features

Max output: 4096×2160 60fps 4:4:4 8-bit
Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:

4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
2560x1440p 60/100
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60

Support 48KHz 8-channel audio output

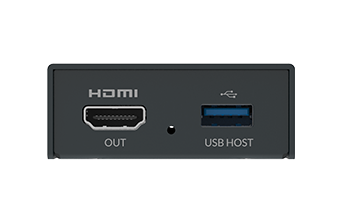

HDMI interface: HDMI 1.4/2.0

Decoding Features

Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x

Configuration Management

Registration with Control Hub
Remote control via WebUI and Control Hub
Provide comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Support for updating firmware
Support for USB RNDIS/ECM
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

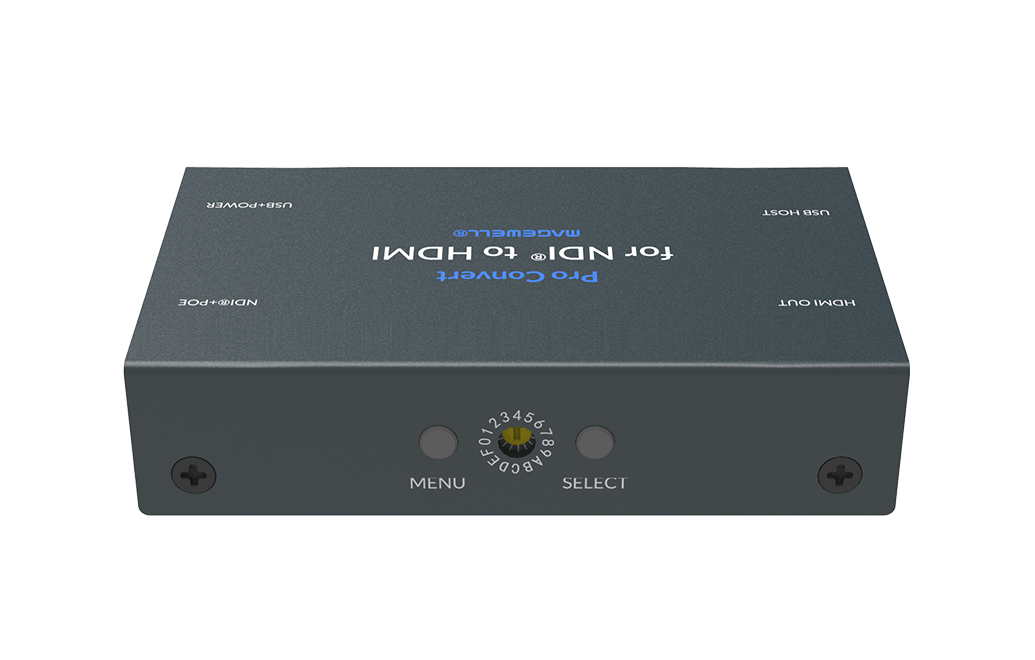

On-board Control Buttons

MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F

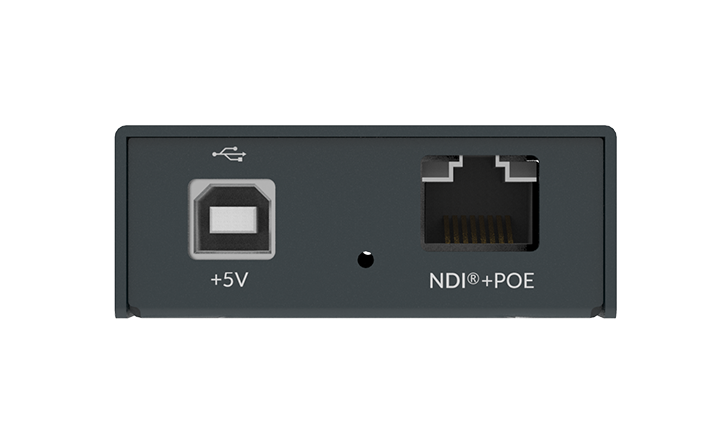

Network Interfaces

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces

USB2.0 Type B

5V/2.1A power supply
USB RNDIS/ECM

USB3.0 Type A

Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED Indicators

Power LED status indicator

On: power connected
Off: power unconnected

Decode LED status indicator

On: decoding
Blinks: decoding error
Off: source unselected

Form Factor

100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket

Screw Mounting Hole

¼–20 threaded hole

Power Consumption

5V max current: ~ 1.1 A
Max power consumption: ~ 5 W

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

L bracket x1
Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
