RE-3 Dual-channel 4K Rackmount Encoding Card
Kiloview RE-3 is the latest version of our Cradle series rackmount encoding card, which enhances the capabilities of our previous RE-1 V2 and RE-2. RE-3 has all the same great features of the original RE series rackmount encoding card, but now it gets the same encoding performance as our E3 including 4K and dual video inputs support. With the upgraded encoding capabilities of RE-3, you can now encode 4K video at up to 30 frames per second or HD video at up to 60 frames per second. Dual-channel video inputs provide users with the highest level of flexibility, allowing them to encode both videos in multiple ways. HEVC technology also enables users to live stream to up to 4 destinations simultaneously. RE-3 is a versatile and cost-effective solution for video encoding in various industries. It can be used for live production, live streaming, remote transmission, and post-production.
Features:
  • HDMI encoding and 3G-SDI encoding up to 4Kp30 / 1080p60
  • HDMI input with 4-channel embedded audio
  • 3G-SDI input with 4-channel embedded audio
  • H.265/H.264 codec and multiple IP streaming protocols support including NDI|HX2, NDI|HX3, SRT, RTMP/ RTMPS, HLS, TS over UDP, RTP/RTSP
  • Mix both video inputs as one output or simultaneously encode both video inputs in 1080p
  • Up to 4 destinations live streaming available
  • High-quality video deinterlacing
  • Multiple audio encoding formats support including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711
  • Low capture/encoding latency
  • Local and NAS recording
  • KiloLink Server
  • Kiloview Intercom System (KIS)

Encoding Cards

Kiloview H.265/H.264 Encoding Cards support 4K HDMI and 3G-SDI encoding capabilities.

RE-1 V2

3G-SDI Encoding Card

Rackmount card version of E1

RE-2

HD HDMI Encoding Card

Rackmount card version of E2

RE-3

Dual-channel 4K HDMI & 3G-SDI Encoding Card

Rackmount card version of E3

RE-100

Dual-channel 3G-SDI Encoding Card

RE-2

Dual-channel 3G-SDI Encoding Card

REN-1 V2

3G-SDI Encoding Card

Rackmount card version of E1-NDI

REN-2

HD HDMI Encoding Card

Rackmount card version of E2-NDI

Tech Specs
Model RE-1 V2 RE-2 RE-100 REN-1 V2 (NDI) REN-100 REN-2 (NDI) RE-3
Input 1*BNC SDI 1*HDMI 2*BNC SDI 1*BNC SDI 2*BNC SDI 1*HDMI

1*3G-SDI

1*4K HDMI

Loop 1*BNC SDI 1*HDMI 2*BNC SDI 1*BNC SDI 2*BNC SDI 1*HDMI /
Applicable frame RU01, RU03, RU03S RU01, RU03, RU03S RU03S RU01, RU03, RU03S RU03S RU01, RU03, RU03S RU01, RU03, RU03S
Analog audio port 1*3.5mm 1*3.5mm / 1*3.5mm / 1*3.5mm 1*3.5mm
NDI|HX / NDI|HX 1.0 and 2.0 NDI|HX2/NDI|HX3
Protocols SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP/Onvif NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif (Extensible for SIP/GB-T2818)
Video codec H264/AVC, Motion-JPEG H.265(HEVC)/H.264(AVC)
Resolution Up to 1080p60

HDMI: up to 4Kp30

3G-SDI: up to 1080p60

Network 1*100M RJ45 Ethernet 1*10/100M/1000M RJ45 Ethernet Port
Audio Encoding AAC/G.711
Image and text overlay User-defined text and image overlay
Video rotation and cropping Support
Management portal Web UI and remote management with KILOVIEW KiloLink Server

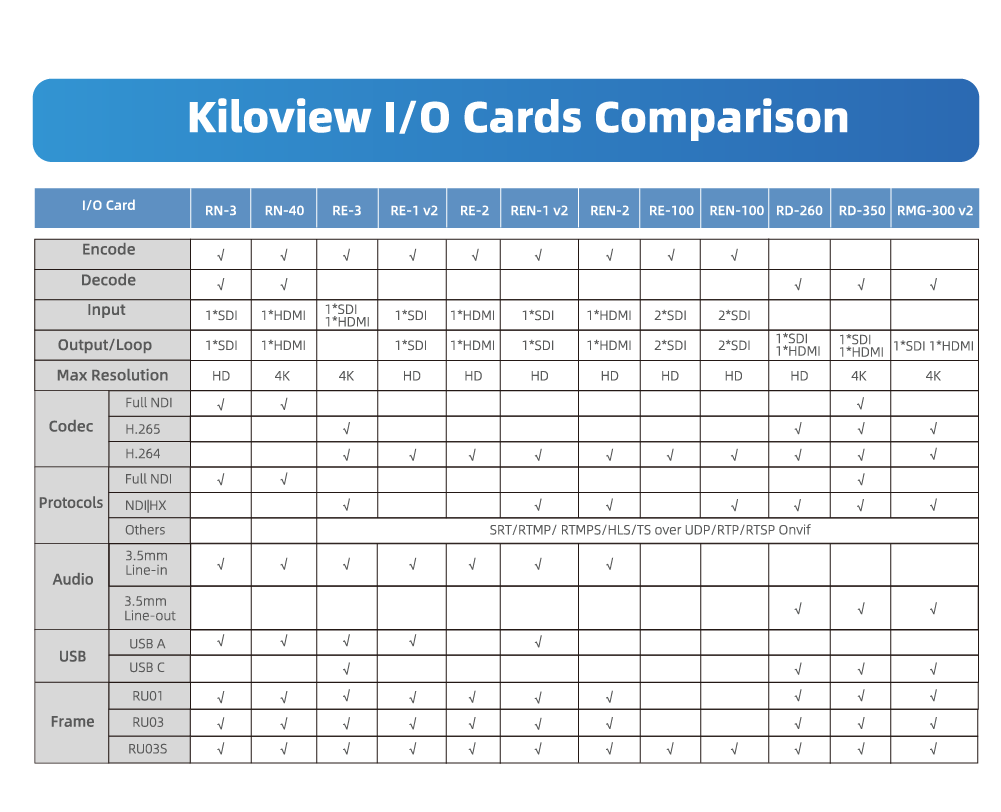

Do you find it hard to pick the right one in our I/O Card Family to fit your workflow?

Here is the chart for your better understanding:
